Mostyn Coaching Stock Formations

As well as
information from enthusiasts' observations made in 1977,
the document on which the coaching stock formations on Mostyn
are based is the British Railways LMR Passenger Train
Marshalling Circular for 2nd May 1977 to 7th May 1978
We were lucky
that a copy of this was loaned to BMRG member David
Goodwin by Bill Rear some 20 years ago when the relevant
sections for the North Wales Coast were typed up for
future reference. Along with the observations from 1977,
this data is used as the basis for the three bigger Mk 1
coach rakes used on Mostyn as well as for the planned
Mark 2 and Mark 3 rakes.
If you click here, BMRG present a
‘North Wales Coast’ version of the Coaching Stock
Marshalling Circular, formatted in the style of the
original document.
Although
the LMR Marshalling Circular has been followed as
faithfully as possible we acknowledge that mistakes may
exist, and this is certainly the case where paper
additions to the original document meant that other
earlier data were obscured. Where some of the obscured
data were recorded in the notes made in the mid-90s,
this is shown in red.
Addendum
- Since this information was first added to the BMRG
website, the BR Passenger Train Marshalling Circular
described above, along with a second copy, is now in the
possession of Robert Carroll. Robert has a
groups.io egroup called BRCoachingStock
dedicated to all things related to 'British Railways
operated coaching stock'; he and other members of the
group have spent time and effort collecting and creating
electronic copies from these Marshalling Circulars, including those
relevant to 1977. Readers are well advised to
join this group if they are interested in the history
and operation of BR coaching stock.
Mark
1 Coaching Stock Formations
Prototype: |
1A78 16 41 Holyhead to Euston
(runs 23 July to 3 Sept.)
Vacuum Braked / Dual Heated / 100mph |
Model: |
Built by David Goodwin & Richard
Oldfield, based on Southern Pride kits, introduced
Feb. 2000 |
Coach
|
Booked
Formation
|
Actual
Formation
|
Number
|
Diag.
|
Bogies
|
Lot no.
|
A
|
* Mk I BSK
|
Mk I BSK
|
M35296
|
181
|
Commonwealth
|
30699/62
|
B
|
* Mk
I SK
|
Mk I SK
|
M25304
|
146
|
BR Mk I
Light DB
|
30349/57
|
C
|
* Mk
I SK
|
Mk I SK
|
M24045
|
146
|
BR Mk I Light DB |
30002/51
|
D
|
* Mk
I SK
|
Mk I SK
|
M25719
|
146
|
Commonwealth |
30685/61
|
E
|
* Mk
I FK
|
Mk I FK
|
M13108
|
116
|
B4
|
30107/54
|
F
|
* Mk
I SO
|
Mk I TSO
|
M3766
|
93
|
BR Mk I
Light DB
|
30079/53
|
G
|
* Mk
I RBK
|
Mk I RKB
|
M1500
|
25
|
B5
|
30514/59
|
H
|
* Mk
I SK
|
Mk I SK
|
M25377
|
146
|
BR Mk I SB
EMU trailer
|
30349/57
|
J
|
* Mk
I SK
|
Mk I SK
|
M25808
|
146
|
Commonwealth
|
30685/61
|
K
|
* Mk
I SK
|
Mk I SK
|
M25738
|
146
|
Commonwealth
|
30685/61
|
L
|
* Mk
I BSK
|
Mk I BSK
|
M35061
|
181
|
BR Mk I
Light DB
|
30233/56
|
Prototype: |
1D17 13 05 (SO) Llandudno to
Nottingham (runs 4 June to 3 September)
Vacuum Braked / Dual Heated / 90mph
Reverses at Derby
|
Model: |
Built by David Goodwin & Richard
Oldfield, based on Southern Pride kits, introduced
Feb. 2000
|
Coach
|
Booked Formation
|
Actual Formation
|
Number
|
Diag.
|
Bogies
|
Lot no.
|
A
|
+ Mk I BSK
|
Mk I BSK
|
M35190
|
181
|
BR Mk I Light DB
|
30427/58
|
B
|
+ Mk I SK
|
Mk I SK
|
M24434
|
146
|
BR Mk I Light DB
|
30030/53
|
C
|
+ Mk I SK
|
Mk I SK
|
M24859
|
146
|
BR Mk I Light DB
|
30153/55
|
D
|
+ Mk I SK
|
Mk I SK
|
M26001
|
146
|
Commonwealth
|
30719/62
|
E
|
+ Mk I CK
|
Mk I CK
|
M16137
|
126
|
BR Mk I Light DB
|
30577/59
|
F
|
+ Mk I SK
|
Mk I SK
|
M25866
|
146
|
Commonwealth
|
30685/61
|
G
|
+ Mk I SK
|
Mk I SK
|
M25686
|
146
|
BR Mk I Light DB
|
30426/57
|
H
|
+ Mk I SK
|
Mk I SK
|
M25558
|
146
|
BR Mk I Light DB
|
30426/57
|
J
|
+ Mk I BSK
|
Mk I BSK
|
M35460
|
181
|
Commonwealth
|
30721/63
|
Prototype: |
1M59 09 33 (SO) Scarborough to
Llandudno (runs 4 June to 3 Sept.)
Vacuum Braked / Dual Heated / 90mph
|
Model: |
Built by David Goodwin & Richard
Oldfield (except M35176 by David Goodwin), based
on Southern Pride kits, introduced Feb. 2000
|
Coach
|
Booked Formation
|
Actual Formation
|
Number
|
Diag.
|
Bogies
|
Lot no.
|
A
|
+ Mk I BSK
|
Mk I BSK
|
M35176
|
181
|
BR Mk I Light DB
|
30427/58
|
B
|
+ Mk I SK
|
Mk I SK
|
M25591
|
146
|
BR Mk I Light DB
|
30426/57
|
C
|
+ Mk I SK
|
Mk I SK
|
M25410
|
146
|
BR Mk I Light DB
|
30350/57
|
D
|
+ Mk I SK
|
Mk I SK
|
M25999
|
146
|
Commonwealth
|
30719/62
|
E
|
+ Mk I CK
|
Mk I CK
|
M16059
|
126
|
BR Mk I Light DB
|
30471/58
|
F
|
+ Mk I CK
|
Mk I CK
|
M16184
|
126
|
Commonwealth
|
30665/61
|
G
|
+ Mk I SK
|
Mk I SK
|
M25615
|
146
|
B4
|
30426/57
|
H
|
+ Mk I SK
|
Mk I SK
|
M24578
|
146
|
BR Mk I Light DB
|
30057/53
|
J
|
+ Mk I SK
|
Mk I SK
|
M26014
|
146
|
Commonwealth
|
30719/62
|
K
|
+ Mk I BSK
|
Mk I BSK
|
M34526
|
181
|
BR Mk I Light DB
|
30095/55
|
Prototype: |
2D53 20 28 Crewe to Bangor
Vacuum Braked / Dual Heated / Timed for 75mph
|
Model: |
Purchased by Philip Sutton, based on
Southern Pride kits, introduced Jan 2003
|
Coach
|
Booked Formation
|
Actual Formation
|
Number
|
Diag.
|
Bogies
|
Lot no.
|
-
|
Booked
|
Mk I BSK
|
M35179
|
181
|
BR Mk I Light DB
|
30427/58
|
-
|
as
|
Mk I SK
|
M26013
|
146
|
Commonwealth
|
30719/62
|
-
|
DMU
|
Mk I SK
|
M25604
|
146
|
B4
|
30426/57
|
-
|
|
Mk I CK
|
M16138
|
126
|
BR Mk I Light DB
|
30577/59
|

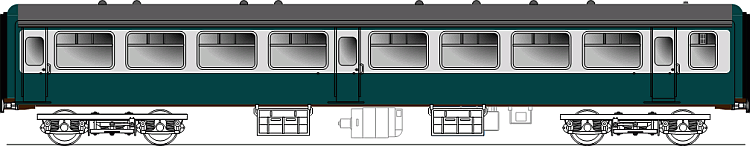

Mark 2 Pressure-Ventilated Coaching Stock
Formations

Prototype: |
1D84 21 10 (SO) Euston to
Holyhead
Mark 2 Vacuum Braked
NOT TO EXCEED 14 VEHICLES FROM EUSTON
|
Model: |
Built by David Faulkner &
Richard Oldfield, based on Bachmann, introduced
June 2016 |
Coach
|
Booked
Formation
|
Actual
Formation
|
Number
|
Diag.
|
Bogies
|
Lot no.
|
L
|
+ SLCT
|
Mk I SLC
|
M2434
|
5
|
Commonwealth
|
30591/60
|
K
|
* BSO
|
Mk II BSO
|
M9384
|
185
|
B4
|
30757/66
|
J
|
* TSO
|
Mk II TSO
|
M5127
|
88
|
B4
|
30751/65-7
|
H
|
* TSO
|
Mk II TSO
|
M5085
|
88
|
B4
|
30751/65-7
|
G
|
*
FO |
Mk
I FO |
M3111 |
73
|
B4 |
30697/62-3 |
F
|
*
RBR |
Mk I RB
|
M1709 |
24
|
Commonwealth
|
30512/60-1
|
E
|
* TSO
|
Mk II TSO
|
M5106
|
88
|
B4
|
30751/65-7
|
D
|
* TSO
|
Mk II TSO
|
M5105
|
88
|
B4
|
30751/65-7
|
C
|
* TSO
|
Mk II TSO
|
M5118
|
88
|
B4
|
30751/65-7
|
B
|
* FK
|
Mk II FK
|
M13429
|
122
|
B4
|
30749/64-5
|
A
|
* BFK
|
Mk II BFK
|
M14045
|
162
|
B4
|
30756/66
|
-
|
* BG
(NEV)
|
Mk
I BG (NEV)
|
M81440
|
711
|
B4 |
30400/57-9
|
-
|
* BG
(NEV)
|
Mk
I BG (NEV)
|
M81624
|
711
|
B4 |
30725/62-3
|
-
|
+
BG (NDV)
|
Mk
I BG (NEV)
|
M81393
|
711
|
BR
STD Mk II
|
30400/57-9
|

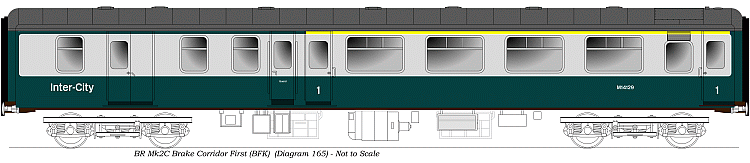

Prototype: |
1A45 10 04 Holyhead to Euston
Mark 2 Air Braked
|
Model: |
Built by David Faulkner &
Richard Oldfield, based on Bachmann, introduced
June 2016 |
Coach
|
Booked
Formation
|
Actual
Formation
|
Number
|
Diag.
|
Bogies
|
Lot no.
|
A
|
* BFK
|
Mk IIC BFK
|
M14129
|
165
|
B4
|
30796/69-70
|
B
|
* FK
|
Mk IIC FK
|
M13541
|
125
|
B4
|
30797/69-70
|
C
|
* FO
(a)
|
Mk IIC FO
|
M3163
|
80
|
B4
|
30810/70
|
D
|
* RMB
|
Mk I RBR (ex RBK)
|
M1626
|
33 #
|
Commonwealth
|
30633/62
|
E
|
* TSO
|
Mk IIC TSO
|
M5566
|
106
|
B4
|
30795/69-70
|
F
|
* TSO
|
Mk IIA TSO
|
M5414
|
86
|
B4
|
30787/68
|
G
|
* TSO
|
Mk IIA TSO
|
M5262
|
86
|
B4
|
30776/67-8
|
H
|
* TSO
|
Mk IIC TSO
|
M5526
|
106
|
B4
|
30795/69-70
|
J
|
* TSO
|
Mk IIC TSO
|
M5530
|
106
|
B4
|
30795/69-70
|
K
|
* TSO
|
Mk IIC TSO
|
M5563
|
106
|
B4
|
30795/69-70
|
-
|
* BG
(NEA)
|
Mk I BG (NEA)
|
M81591
|
711
|
B4
|
30715/62
|
-
|
* BG
(NEA)
|
Mk
I BG (NEA)
|
M81088
|
711
|
B4 |
30228/57-8
|
-
|
-
|
Mk
I RMB
|
M1867
|
99
|
B4 |
30702/62
|
(a) - declassified on Sats
# - Converted from RBK (diagram 28), later became design
code AJ 415 1A

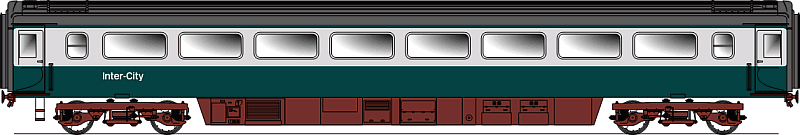

Mark 2 / Mark 3 Air-conditioned Coaching Stock
Formation
Prototype: |
1D53 10 25 (SO) Euston to
Llandudno (runs 4 June to 10 Sept.)
Mk 2+3 Air conditioned
|
Model: |
Built by - David
Faulkner & Richard Oldfield |
Coach
|
Booked
Formation
|
Actual
Formation
|
Number
|
Diag.
|
Bogies
|
Lot no.
|
A
|
@ BSO
|
Mk2F
BSO
|
M9520
|
189
|
B4
|
30861/74
|
B
|
% TSO
|
Mk3A
TSO
|
M12017
|
111
|
BT10
|
30877/75-7
|
C
|
% TSO
|
Mk3A TSO
|
M12165 |
111
|
BT10 |
30877/75-7
|
D
|
% TSO
|
Mk3A TSO
|
M12150
|
111
|
BT10
|
30877/75-7
|
E
|
% TSO
|
Mk3A TSO
|
M12029
|
111
|
BT10 |
30877/75-7
|
F
|
* RBR
|
Mk I RBR (ex RBK)
|
M1775
|
33
#
|
Commonwealth
|
30633/62
|
G
|
@ FO (a)
|
Mk2F FO |
M3302
|
83
|
B4 |
30845/73
|
H
|
@ FO (a)
|
Mk2F FO
|
M3340
|
83
|
B4
|
30859/73-4
|
J
|
@ FO (a)
|
Mk2F FO
|
M3323
|
83
|
B4
|
30859/73-4
|
K
|
@ FO
|
Mk2F FO
|
M3314
|
83
|
B4
|
30845/73
|
|
*
BG (NEA)
|
Mk
I BG (NEA)
|
M81500
|
711
|
B4
|
30484/58
|
(a) - declassified
# - Converted from RBK (diagram 28), later became design
code AJ 415 1A
% - Electric Heated Vehicle (mark 3) 125 M.P.H.
@ - Electric Heated Vehicle 100 M.P.H.
* - Dual Heated Vehicle 100 M.P.H.
+ - Dual Heated Vehicle
